VRSF Race Intercooler FMIC 09 – 16 BMW 535i, 640i, 740i F01/F02/F06/F07/F10/F11/F12/F13

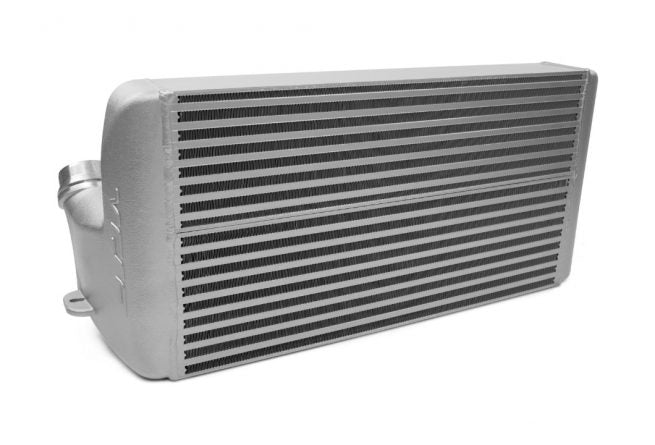

VRSF HD Stepped Race Intercooler Kit

For 2009 – 2016 BMW 535i, 535xi, 640i, 640xi, 740i, 740xi

Upgrade your BMW’s cooling performance by replacing the inefficient factory intercooler with the VRSF HD Stepped Race Intercooler Kit. Engineered for high performance and reliability, this direct bolt-on intercooler offers superior heat management to maximize horsepower gains by keeping intake temperatures low and preventing heat soak—a common weakness of OEM intercoolers.

Intercooler Core

The core is the heart of any intercooler, responsible for cooling turbocharged air before it enters the engine. The factory tube and fin design is adequate at low boost but quickly overwhelmed at higher levels, leading to heat soak, power loss, and increased risk of pre-detonation at high RPMs.

The VRSF Race HD FMIC uses a bar and plate core with a staggered, high-density fin pack to deliver excellent intake temperature reduction while minimizing pressure drop. Its robust construction also offers better protection against rocks and debris compared to OEM tube and fin units.

Performance:

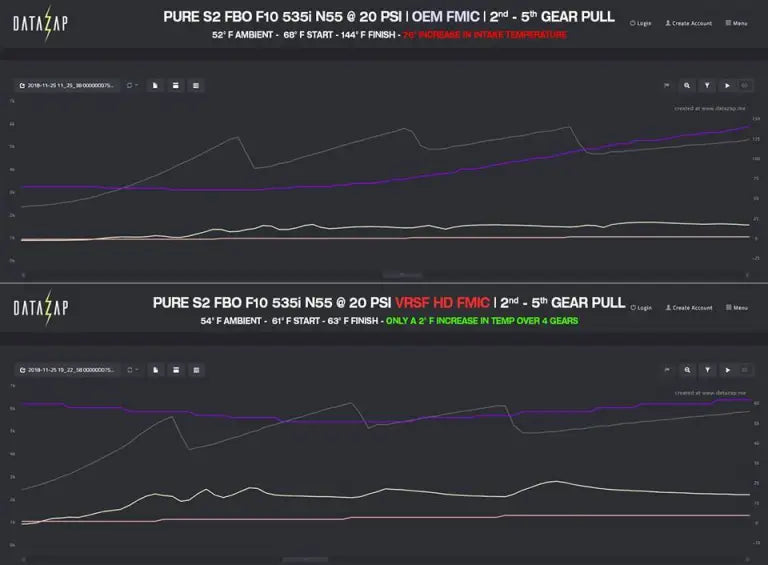

During intense driving (2nd to 5th gear pulls), OEM intercoolers often see intake temperatures rise 80–90°F. The VRSF intercooler drastically improves this—on a 54°F day, it maintained intake temps with only a 2°F rise compared to a 76°F rise on the OEM unit at 20 psi boost.

Finish & Construction

• CNC-machined, 3D CAD-designed cast aluminum end tanks for improved flow over sheet metal alternatives

• One-piece seamless cast end tanks for enhanced durability

• Bright silver protective coating resists corrosion

• Hand-finished and pressure tested for a leak-free, high-quality fit

Installation

• Complete plug-and-play bolt-on kit with no cutting required

• Retains factory fan shroud tabs

• Compatible with OEM and aftermarket intercooler piping

• Fits both Left Hand Drive (LHD) and Right Hand Drive (RHD) models, including all xDrive (AWD) variants

Features

• Ultra high-density bar and plate core

• CFD optimized cast aluminum end tanks

• 102% larger core volume than OEM intercooler

• Lifetime warranty and no-hassle satisfaction guarantee

Fitment

• 2009 – 2016 F07/F10/F11 BMW 535i & 535xi (RHD & LHD)

• 2009 – 2016 F07/F10/F11 BMW 535i & 535xi Gran Turismo GT (RHD & LHD)

• 2010 – 2016 F06/F12/F13 BMW 640i & 640xi (RHD & LHD)

• 2007 – 2012 F01/F02 BMW 740i (RHD & LHD)

• 2007 – 2015 F01/F02 BMW 740Li (RHD & LHD)
