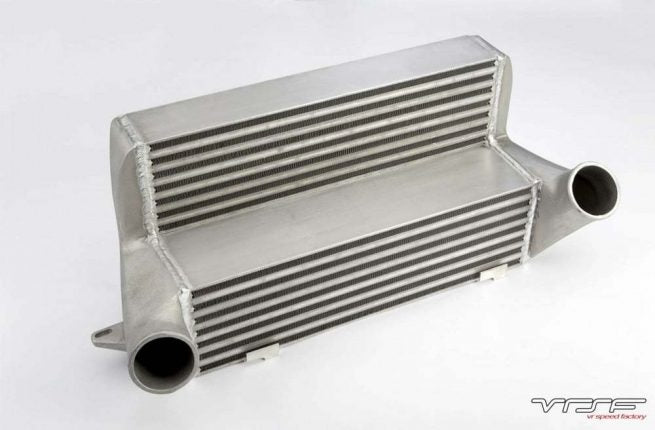

VRSF E60 FMIC INTERCOOLER 7.5″ Race HD FMIC – (Up to 1100whp)

VRSF Bolt-On Intercooler Upgrade Kit

For 2007–2010 BMW E60 535i & 535xi (N54 Engine)

Upgrade your factory intercooler to the VRSF high-performance intercooler and unleash the full potential of your N54-powered E60 535i/535xi. Designed with a focus on durability, cooling efficiency, and performance, this direct bolt-on intercooler kit keeps intake air temperatures low, preventing heat soak—a common issue with the OEM intercooler under increased boost.

Why Upgrade?

The factory tube-and-fin intercooler was engineered for modest boost levels and airflow. When you tune your car or increase boost, the stock intercooler quickly becomes overwhelmed, leading to heat soak, reduced power output, and a higher risk of engine knock or pre-detonation at high RPMs.

Intercooler Core Technology

The heart of any intercooler is its core, which cools charged air before it enters the engine. VRSF solves OEM limitations with a custom bar and plate core design featuring staggered and offset high-density internal and external fin packs. This carefully tuned core maximizes intake temperature reduction while maintaining minimal pressure drop, outperforming the stock core in both efficiency and durability.

Our bar & plate core is also far more resilient against road debris compared to the fragile OEM tube and fin design.

• 5” Performance Stepped HD Core: On a stock turbo setup, intake temps rise only 0-3°F during a 3rd gear pull, dramatically less than the OEM’s 32°F increase.

• 7” Competition HD Core: Can even reduce intake temps during heavy acceleration due to larger surface area.

• Ultra High Density Race Core: For builds pushing beyond 650whp, this 1000hp-capable bar and plate core is 134% larger than stock, ideal for large twin or single turbo setups.

Proven in the Field

Our 7.5” FMIC has powered some of the world’s highest horsepower N54 builds, including record-breaking cars with 861+ wheel horsepower. It’s the only intercooler officially supporting 1000whp N54 engines.

Construction & Finish

• Cast Aluminum End Tanks: Precision 3D CAD designed, seamless cast aluminum end tanks improve airflow and durability, superior to OEM sheet metal tanks.

• Bright Silver Protective Coating: Protects against corrosion for lasting performance in all climates.

• Hand Finished & Pressure Tested: Ensures a leak-free, premium quality product.

Installation Details

• Direct bolt-on replacement with included custom molded silicone couplers and stainless steel T-bolt clamps.

• Retains factory fan shroud with included mounting hardware.

• 5” Stepped Core: No trimming required; may require auxiliary cooler relocation.

• 7” & 7.5” Race Cores: Require minor trimming of black plastic shroud behind bumper; bumper remains untouched.

• Fits both Left Hand Drive and Right Hand Drive models.

• Typical install time under 2.5 hours.

Features

• High-density bar & plate core

• Cast aluminum end tanks

• Easy installation with all hardware included

• Lifetime warranty with VRSF’s “No Hassle” guarantee

• Compatible with 2007–2010 BMW E60 535i/535xi models

Unlock more power, improved reliability, and cooler intake temperatures with VRSF’s proven intercooler upgrade kit — the perfect match for your N54 tuned BMW.
