Spool - Helix HPFP Overdrive Unit

🔧 Spool Performance Helix HPFP Overdrive System – N54 / Early N55 Engines

Upgrade your fueling game with the Spool Performance Helix HPFP Overdrive System, designed to maximize the output of your factory high-pressure fuel pump (HPFP) without the need for secondary port injection systems. Ideal for high-powered builds running full E85 or ethanol blends, the Helix delivers consistent fuel pressure at high boost and RPMs.

🛠 What Is the Helix?

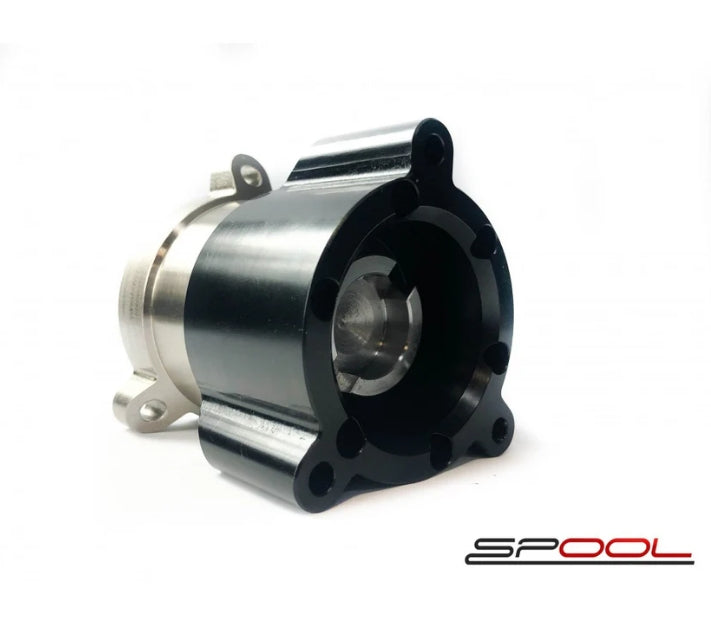

The Helix is a planetary gear-driven overdrive unit that increases the rotational speed of your HPFP. Much like gearboxes found in automatic transmissions, the Helix uses sun, planet, and ring gears to spin the pump faster—resulting in higher fuel volume and pressure to keep up with aggressive tuning demands.

💡 Why You Need It

As you push your N54 or early N55 engine beyond stock power levels, the stock HPFP runs out of displacement, causing rail pressure drops under load. Spinning the pump faster increases the number of delivery strokes per cycle. That’s exactly what the Helix does—boosts fuel delivery capacity without the complexity of an additional fueling system.

⚙️ Performance Capabilities

• Helix Standard

  • Supports up to 600whp on full E85

  • Supports up to 750+ whp on E60+ mixes

• Helix Xtreme (Coming Soon)

  • Supports up to 750whp on full E85

  • Supports 850+ whp on E60/gasoline blends
    (Currently in long-term testing)

🔍 HPFP Longevity Considerations

Through extensive testing and failure analysis, Spool has determined that overdriving the HPFP does not accelerate wear or contribute to common failure modes. Most HPFP failures are related to:

• Solenoid actuation coil issues

• Bypass valve degradation (exacerbated by E85 exposure)

Key takeaway: The core mechanical components (spring, pistons, squash plate) show minimal wear, even at high mileage.

💻 Tune Required

To utilize the Helix system’s full potential, calibration adjustments are required. Spool Performance works with all major tuners and offers base maps and guidance upon request.

📦 What’s Included:

• Helix Planetary Overdrive Unit

• Billet Vacuum Cover Mounting Plate (included with every new unit)

• Support Bracket & All Necessary Hardware

• Ready to install – no separate purchase necessary

✅ Vehicle Compatibility:

• BMW N54 Engines (135i, 335i, 535i – up to 2010)

• Early BMW N55 Engines (pre-2013 models – check HPFP type)

📌 Not compatible with newer N55 or N20/N26 engines. Confirm your pump model before purchasing.

🏁 Boost Fuel Pressure. Stay on Power. Run E85 with Confidence.

Get more from your stock HPFP with the Spool Performance Helix—the most efficient and reliable overdrive fueling solution for high-powered N54 and early N55 builds.

No cutting. No secondaries. Just more flow, more boost, more power.
