SPEEDTECH N55 F2X/F3X/F87 (NON-COMP) PRECISION 6466 NEXT GEN TOP MOUNT KIT

Precision 6466 Next Gen CEA Ball Bearing Turbo Kit – N54 T4 Top Mount

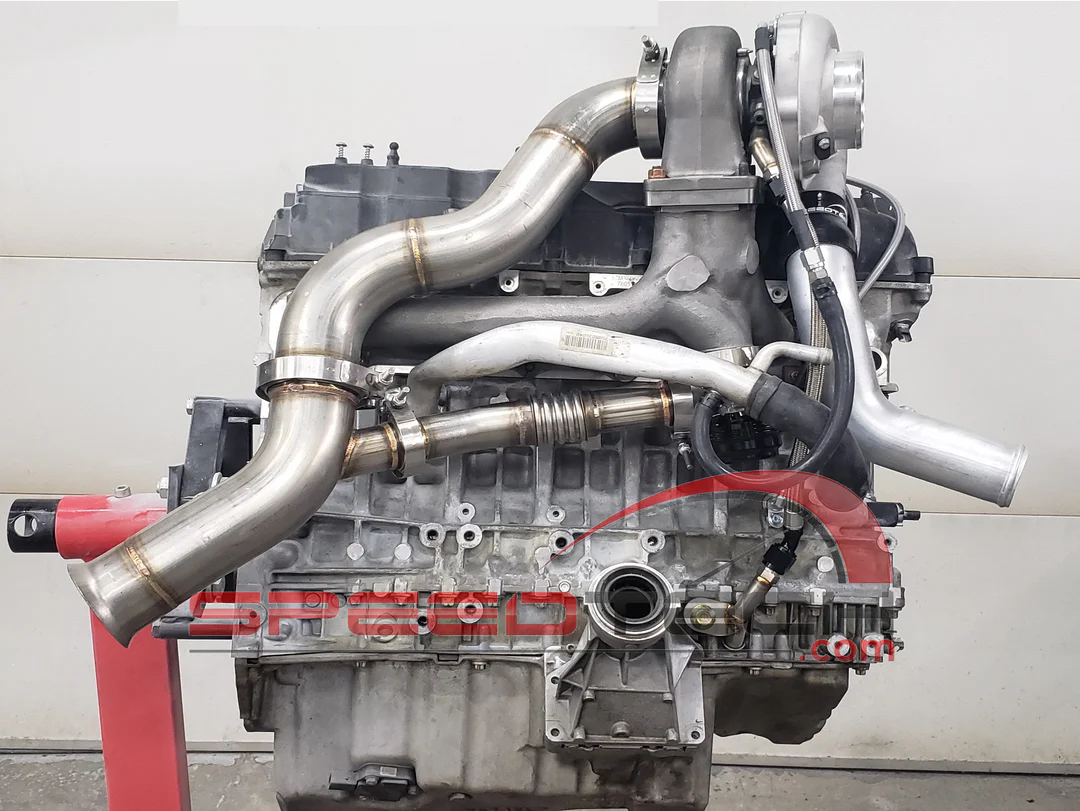

Take your BMW N54 to the next level with the Precision 6466 Next Gen CEA Ball Bearing Turbo, designed for serious performance. This top-mount T4 kit delivers massive power potential with improved spool characteristics, ideal for aggressive street builds or dedicated track cars.

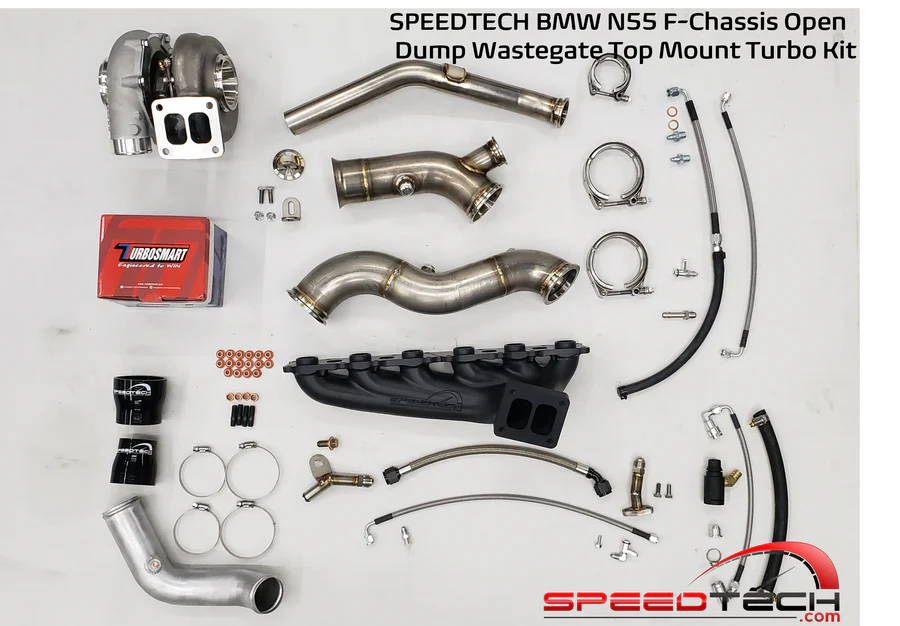

🔧 INCLUDED IN THE KIT:

• Precision 6466 Next Gen CEA Ball Bearing Turbo

• T4 Manifold with studs and nuts
  (Choose Ceramic-Coated or Non-Ceramic finish)

• 2-Piece Stainless Steel Tubing
  *(If fabricating your own, email us for a discount code to remove this option)

• Stainless Steel Wastegate Pipe
  (Recirculating or Open Dump configurations available)

• V-Band Clamps

• Billet CNC Aluminum Oil & Coolant Plugs with O-rings

• Stainless Braided -4AN Oil Feed Hose with AN Fittings

• Stainless Braided -10AN Oil Drain Hose

• Stainless Steel -10AN Turbo Drain Fitting

• Stainless Steel -10AN Engine Block Return Fitting

• Aluminum Charge Pipe

• High-Temp Silicone Couplers

• Coolant Expansion Tank Relocation Kit

• Wastegate Options:

  • Turbosmart Hypergate

  • TiAL MVR

  • PSR 45mm

  • Or select the kit without a wastegate

⚠️ IMPORTANT FITMENT NOTE:

If your vehicle is equipped with the auxiliary radiator, you must delete the OEM water-to-oil cooler (located under the coolant expansion tank) to clear the top mount turbo. This will require sourcing oil cooler lines for a non-aux radiator vehicle.

🚚 LEAD TIME:

• Speedtech Kit Components: Typically 2–4 weeks

• Precision Turbocharger: Lead time varies based on current availability
