SPEEDTECH N55 F2X/F3X/F87 (NON-COMP) PRECISION 6266 NEXT GEN TURBO TOP MOUNT KIT

Precision 6266 Next Gen CEA Ball Bearing Turbo Kit – N54 T4 Top Mount

NOTE:
If your N54-equipped BMW features the auxiliary radiator, you will need to delete the factory water-to-oil cooler located beneath the coolant expansion tank. This cooler interferes with the top mount turbo location. To complete this setup, you must source new oil cooler lines from a vehicle without the auxiliary radiator option.

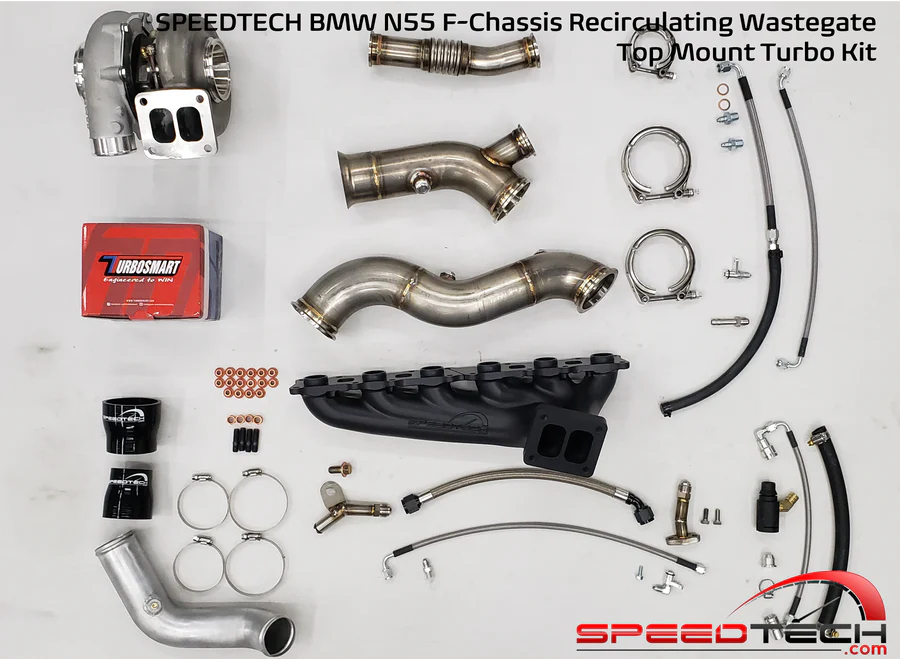

✅ Included in the Kit:

• Precision 6266 Next Gen CEA Ball Bearing Turbocharger

• T4 Top Mount Manifold with studs and nuts
  (Ceramic-coated or Non-Ceramic options available)

• 2-Piece Stainless Steel Tubing
  (Can be excluded for discount if fabricating your own – email for a code)

• Stainless Steel Wastegate Pipe
  (Recirculating or Open Dump configuration available)

• V-Band Clamps

• Billet CNC Aluminum Oil & Coolant Plugs with O-rings

• -4AN Stainless Braided Oil Feed Line with AN fittings

• -10AN Stainless Braided Oil Drain Hose

• Stainless -10AN Turbo Drain Fitting

• Stainless -10AN Engine Block Fitting

• Lightweight Aluminum Charge Pipe

• High-Temp Silicone Couplers

• Coolant Expansion Tank Relocation Kit

• Wastegate Options:

  • Turbosmart Hypergate

  • TiAL MVR

  • PSR 45mm

  • Option to purchase without a wastegate

📦 Lead Time:

• Speedtech Components: Typically ships in 2–4 weeks

• Precision Turbo: Lead time varies depending on stock and availability
