SPEEDTECH N54 PRECISION GEN2 PT6870 TOP MOUNT KIT

Precision GEN2 PT6870 CEA Ball Bearing Turbo Kit – T4 Divided | Complete Speedtech Kit

Built for 1000+ HP — This complete turbocharger system features the Precision GEN2 PT6870 CEA Ball Bearing turbo and Speedtech’s proven platform. Ideal for serious street, drag, and half-mile builds, this bolt-on setup delivers incredible spool, top-end power, and reliable performance under pressure.

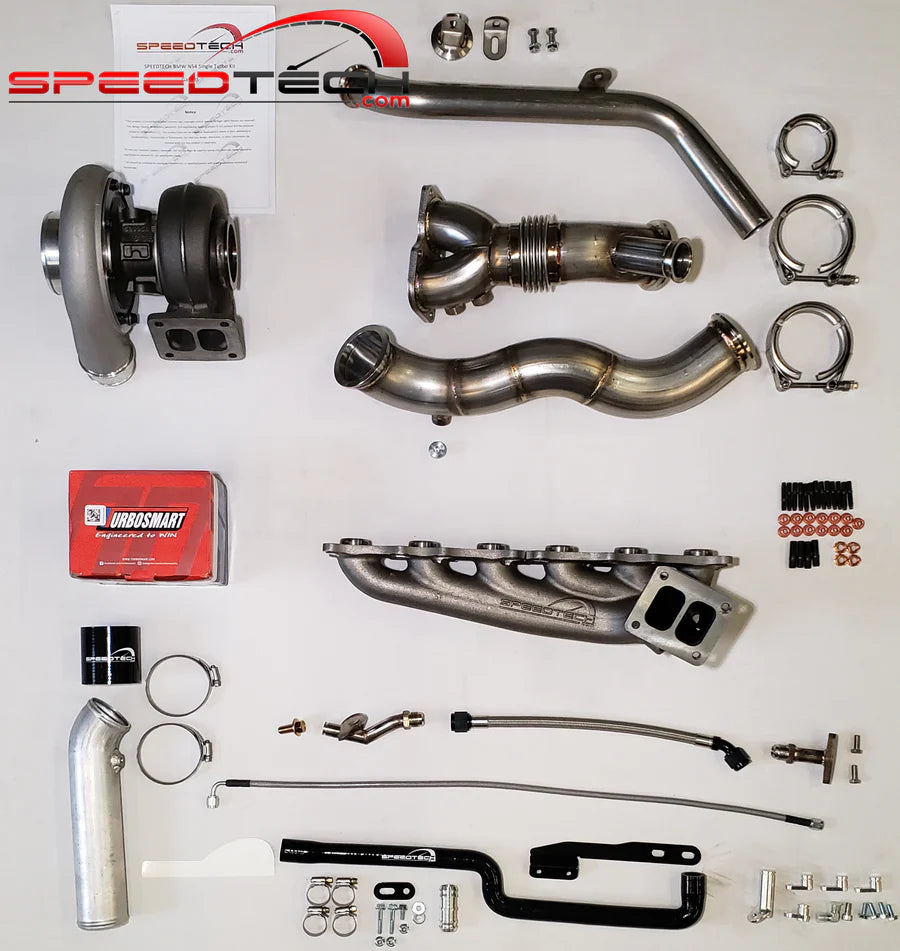

✅ INCLUDED IN THE KIT:

• Precision GEN2 PT6870 CEA Ball Bearing Turbo

  • T4 Divided housing with .84 A/R

  • Dual Ball Bearing CHRA

  • Competition Engineered Aerodynamics (CEA) wheel design

• T4 Manifold

  • Includes studs and nuts

  • Available in Ceramic Coated or Non-Ceramic

• 2-Piece Stainless Steel Tubing

  • Optional: Fabricating your own? Email us for a discount code to remove these parts.

• Stainless Steel Wastegate Pipe

  • Choice of Recirculating or Open Dump

• V-Band Clamps – For all critical turbo and wastegate connections

• Billet CNC Aluminum Oil & Coolant Plugs with O-Rings

• -4AN Stainless Braided Oil Feed Line & AN Fittings

• -10AN Stainless Braided Oil Drain Line

  • With Stainless Steel Turbo and Engine Block Fittings

• Aluminum Charge Pipe

  • Lightweight and heat-resistant

• Silicone Couplers – High-temp rated

• Coolant Expansion Tank Relocation Kit

🌀 Wastegate Options (Choose One):

• Turbosmart Hypergate 45mm

• Turbosmart Hypergate Sleeper Lite (includes full spring set)

• TiAL MVR 44mm

• PSR 45mm

• You may also choose to order the kit without a wastegate.

⏱ Lead Time:

• Speedtech Components: Usually ships in 2 to 4 weeks

• Turbocharger: Lead time may vary depending on Precision stock
