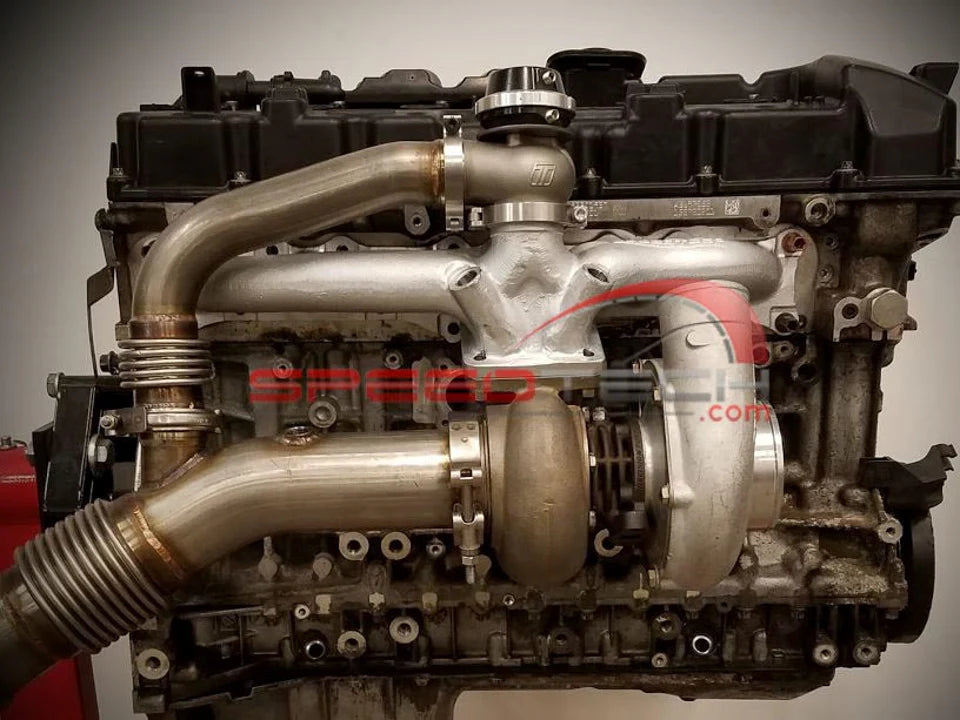

SPEEDTECH N54 PRECISION GEN2 PT6466 BOTTOM MOUNT KIT

Precision GEN2 PT6466 CEA Ball Bearing Turbo Kit – T4

Complete Speedtech Turbo Kit | Built for High Horsepower Applications

The GEN2 PT6466 CEA Ball Bearing is a powerhouse turbo ideal for big power street builds, drag applications, and high-boost setups. This full Speedtech kit includes every component you need — from turbo to charge piping — for a true bolt-on installation with no guesswork.

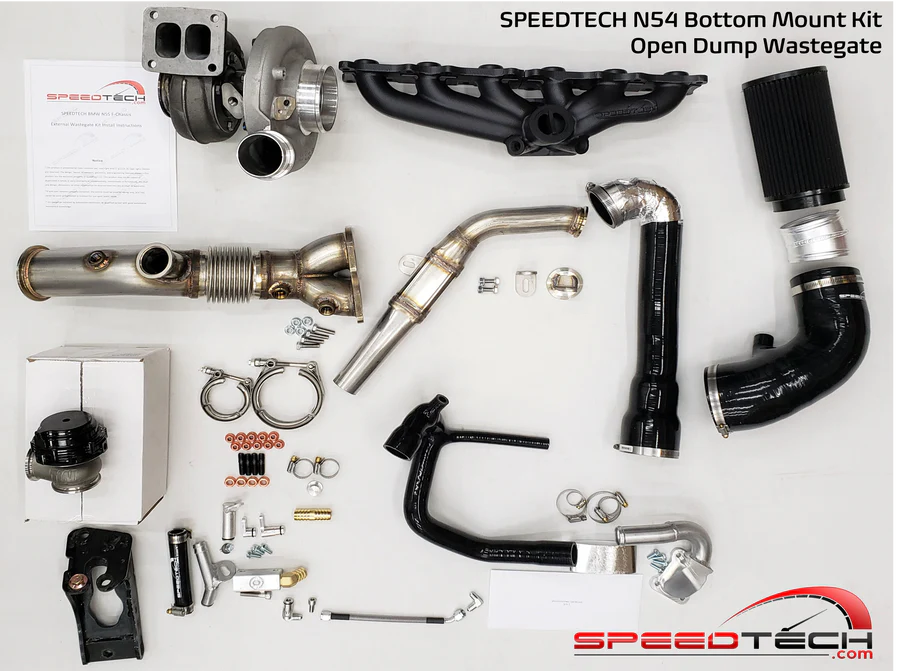

✅ INCLUDED IN THE KIT:

• Precision GEN2 PT6466 CEA Ball Bearing Turbocharger

  • Ball Bearing CHRA for quick spool and durability

  • GEN2 CEA compressor wheel technology for maximum efficiency

  • T4 turbine housing (choose your desired A/R)

• T4 Turbo Manifold

  • Includes studs and nuts for secure mounting

  • Choice of Ceramic Coated or Non-Ceramic

• Stainless Steel Tubing

  • Durable, heat-resistant for long-term reliability

• Wastegate Pipe

  • Choose Recirculating or Open Dump style

• RH Engine Mount Bracket

  • Engine-specific fitment for proper turbo support

• Coolant Block Manifold & Silicone Coolant Hose

• Billet Oil Feed & Return Fittings (Engine-Side)

  • Clean AN-style fittings for a leak-free install

• Stainless Braided Oil Feed Line (-4AN)

• Silicone Turbo Inlet & Outlet Couplers

• Air Filter

  • High-flow, reusable filter for performance and protection

🌀 Wastegate Options (Choose One):

• Turbosmart Hypergate 45mm

• TiAL MVR 44mm

• PSR 45mm

• Or choose to exclude the wastegate from your kit

⏱ LEAD TIME:

• Speedtech Components: Typically ships in 2 to 4 weeks

• Precision Turbo Lead Time: Varies based on availability and spec
