SPEEDTECH N54 PRECISION GEN2 PT5862 TOP MOUNT KIT

Precision GEN2 PT5862 CEA Ball Bearing Turbo Kit – T4 Divided (.84 A/R)

For serious power with exceptional spool and top-end efficiency, the GEN2 PT5862 CEA Ball Bearing Turbo Kit featuring the T4 Divided .84 A/R housing is built for high-performance street or track use. Designed for reliability, ease of installation, and maximum flow, this complete kit includes premium components throughout.

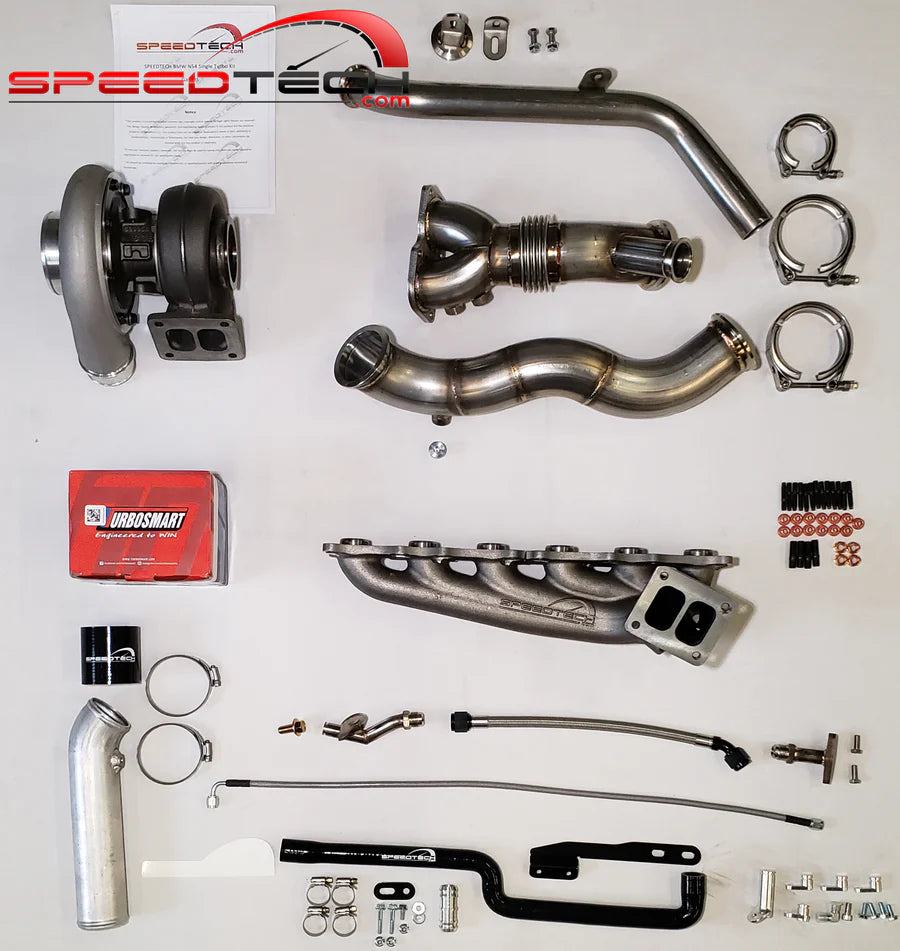

✅ INCLUDED IN THE KIT:

• Precision GEN2 PT5862 CEA Ball Bearing Turbo

  • T4 Divided Inlet w/ .84 A/R for maximum flow and boost efficiency

  • Advanced CEA (Competition Engineered Aerodynamics) with fast-spooling dual ball bearing center section

• T4 Turbo Manifold

  • Includes studs and nuts

  • Choice of Ceramic Coated or Non-Ceramic finish

• 2-Piece Stainless Steel Tubing

  • Modular design for easier install and maintenance

  • If fabricating your own tubing, email us for a discount code to remove these parts

• Stainless Steel Wastegate Pipe

  • Select Recirculating or Open Dump based on your setup

• V-Band Clamps

  • High-temp, secure, and service-friendly

• Billet CNC Aluminum Oil & Coolant Plugs + O-Rings

  • Precision-fit sealing for longevity and leak-free performance

• -4AN Stainless Braided Oil Feed Line w/ AN Fittings

  • Heat and pressure resistant

• -10AN Stainless Braided Oil Drain Line

  • Includes billet fittings:

    • Turbo Side Fitting

    • Engine Block Return Fitting

• Aluminum Charge Pipe

  • Lightweight, durable, and optimized for airflow

• Silicone Couplers

  • High-temp, flexible connections

• Coolant Expansion Tank Relocation Kit

  • Makes room for the turbo setup while maintaining factory coolant flow

• Wastegate Options (Choose One):

  • Turbosmart Hypergate 45mm

  • Turbosmart Hypergate Sleeper Lite (includes all internal springs)

  • TiAL MVR 44mm

  • PSR 45mm

  • Or opt to exclude the wastegate if you already have one

⏱ LEAD TIME:

• Speedtech Kit Components: Estimated 2–4 weeks

• Turbocharger: Lead time may vary based on Precision Turbo availability
