SPEEDTECH N54 NO TURBO RECIRCULATING WASTEGATE TOP MOUNT KIT

VEHICLE SPECIFICATIONS: 2007-2010 135i/335i (RWD/MT)
 2007-2010 135i/335i (RWD/AT)
 2007-2010 335xi (AWD/MT)
 2007-2010 335xi (AWD/AT)
 2010-2013 335is (RWD/DCT)

CHARGE PIPE TO INTERCOOLER CONNECTION: 2.5" (Inside Diameter) silicone coupler
 3" (Inside Diameter) silicone coupler
 *My Intercooler uses the stock c-clip connection* Note: you'll receive a 2.5" silicone coupler and you will need to purchase our E-Chassis Billet Intercooler Adapter, sold separately

N54 Bottom Mount No Turbo Kit with Recirculating Wastegate Pipe

Customize your turbo build with our high-quality Bottom Mount No Turbo Kit, engineered for enthusiasts who prefer to source their own turbochargers. This kit includes all essential components for a professional-grade installation with the option to add a wastegate.

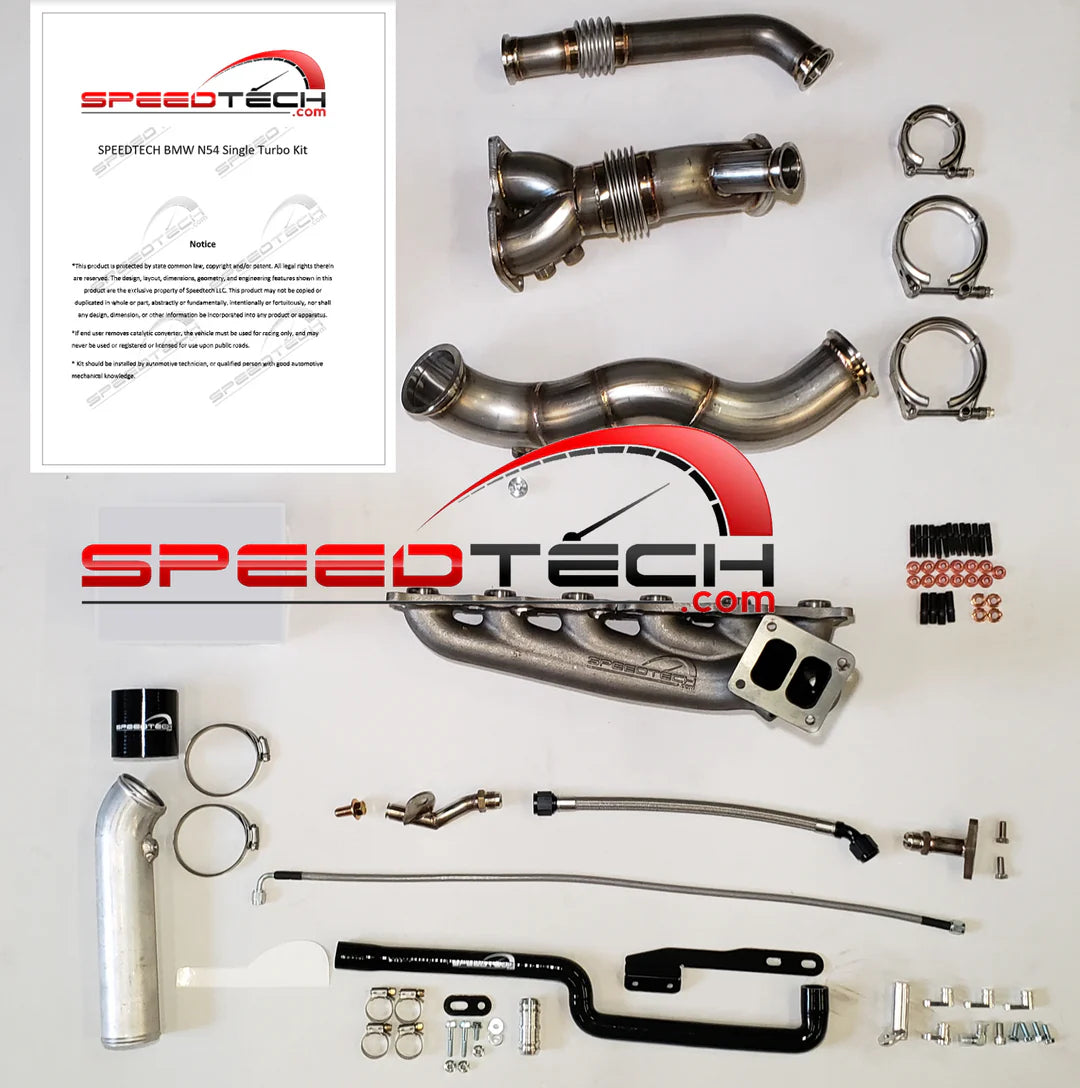

What’s Included in the Kit:

• T4 Turbo Manifold with studs and nuts

  • Choose between Ceramic or Non-Ceramic coating for superior heat resistance and durability.

• 2-Piece Stainless Steel Tubing

  • Ready to install and heat resistant.

  • (If fabricating your own downpipe, contact us for a discount code to remove this part from your order.)

• Stainless Steel Recirculating Wastegate Pipe

  • Designed to recirculate exhaust gases to reduce noise and emissions.

• V-Band Clamps

  • High-quality clamps for leak-proof, easy assembly.

• Billet CNC Aluminum Oil & Coolant Plugs, Coolant Fittings, O-Rings

  • Precision-machined for durability and reliable sealing.

• Stainless Braided Hoses with AN Fittings:

  • -4AN Oil Feed Hose

  • -10AN Oil Drain Hose

• Stainless Steel -10AN Turbo Drain and Engine Block Fittings

  • Ensures proper turbo lubrication and cooling.

• Aluminum Charge Pipe

  • Lightweight, high-strength piping for efficient boost delivery.

• Silicone Couplers

  • Flexible and heat-resistant for secure airflow connections.

• Coolant Expansion Tank Relocation Kit

  • Optimizes engine bay space for turbo installation.

• Optional Wastegate Choices:

  • Purchase with or without a wastegate. Options include:

    • Turbosmart Hypergate

    • Turbosmart Hypergate Sleeper Lite (includes all wastegate springs)

    • TiAL MVR

    • PSR 45mm

Lead Time:

Typical shipping time is 3 to 4 weeks.

Important Turbo Compatibility Notes:

BorgWarner SXE Turbos:

• S3XX turbos have larger compressor housings resulting in reduced hood clearance (~3mm).

• Variability in motor mount isolator thickness, age, and tolerances may make fitment tight.

• Turbine housing must have a 3" V-band outlet, NOT a Marmon flange.

• The V-band mating face should be aligned roughly with the rear surface of the T4 flange to avoid tubing misalignment or interference with valve covers.

Garrett Turbos:

• GTW and G-Series turbos have specific oil feed and drain fittings unique to each series and are not interchangeable.

• Note: Kits for GTX Gen2 turbos were discontinued in 2023 due to their unique oil drain requirements.

General Turbo Fitment:

• Turbine housing requires a T4 inlet and 3" V-band outlet.

• Compressor housing must have a 2" or 2.5" outlet.
