SPEEDTECH N54 NO TURBO RECIRCULATING WASTEGATE BOTTOM MOUNT KIT

 2007-2010 135i/335i (RWD/MT)
 2007-2010 135i/335i (RWD/AT)
 2007-2010 335xi (AWD/MT)
 2007-2010 335xi (AWD/AT)
 2010-2013 335is (RWD/DCT)

Customize your turbo setup with our premium Bottom Mount No Turbo Kit featuring a recirculating wastegate pipe — perfect for enthusiasts sourcing their own turbocharger.

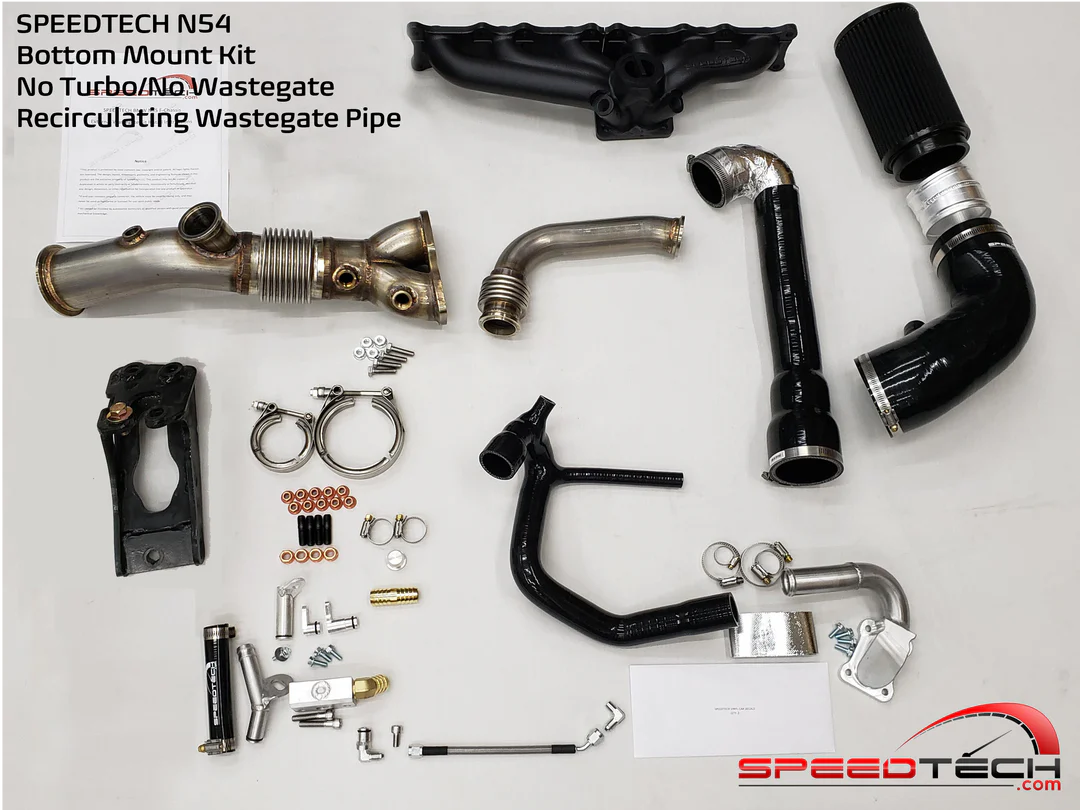

✅ Kit Includes:

• T4 Turbo Manifold with studs and nuts

  • Available with your choice of Ceramic or Non-Ceramic coating for superior heat management and durability.

• Stainless Steel Tubing

  • Precision-formed for ideal fitment and heat resistance.

• Recirculating Wastegate Pipe

  • Designed to recirculate exhaust gases back into the system, reducing noise and emissions.

• Right-Hand Engine Mount Bracket

  • Provides solid turbo support and proper engine alignment.

• Coolant Block Manifold

  • Efficient cooling integration tailored for single turbo applications.

• Silicone Coolant Hose

  • Durable, flexible, and heat-resistant.

• Billet Aluminum Oil Fittings (engine side)

  • CNC-machined for precise fit and long-term reliability.

• Stainless Braided Oil Feed Hose

  • High-quality -4AN line with AN fittings for robust oil delivery.

• Billet Coolant Fittings (engine side)

  • Engineered for leak-free connections.

• Silicone Turbo Inlet and Outlet Couplers

  • Flexible and heat-resistant connections for turbo plumbing.

• High-Flow Air Filter

  • Protects your turbo from debris while allowing maximum airflow.

⏱ Lead Time:

Standard assembly and shipping time is 3 to 4 weeks.

⚠️ Important Turbo Fitment Notes:

BorgWarner SXE Turbos:

• Turbine housing must have a 3" V-band outlet (not the standard Marmon flange).

• The v-band mating surface should align roughly with the rear plane of the T4 flange. Misalignment can cause tubing fitment issues.

Garrett Turbos:

• GTW and G-Series turbos have distinct oil feed and drain fittings — not interchangeable.

• As of 2023, kits for GTX Gen2 turbos are discontinued due to their unique oil drain needs.

General Turbo Requirements:

• Turbine housing must have a T4 inlet and 3" V-band outlet.

• Compressor housing outlet must be either 2" or 2.5".
