SPEEDTECH N54 HPT F2 6266 TOP MOUNT KIT

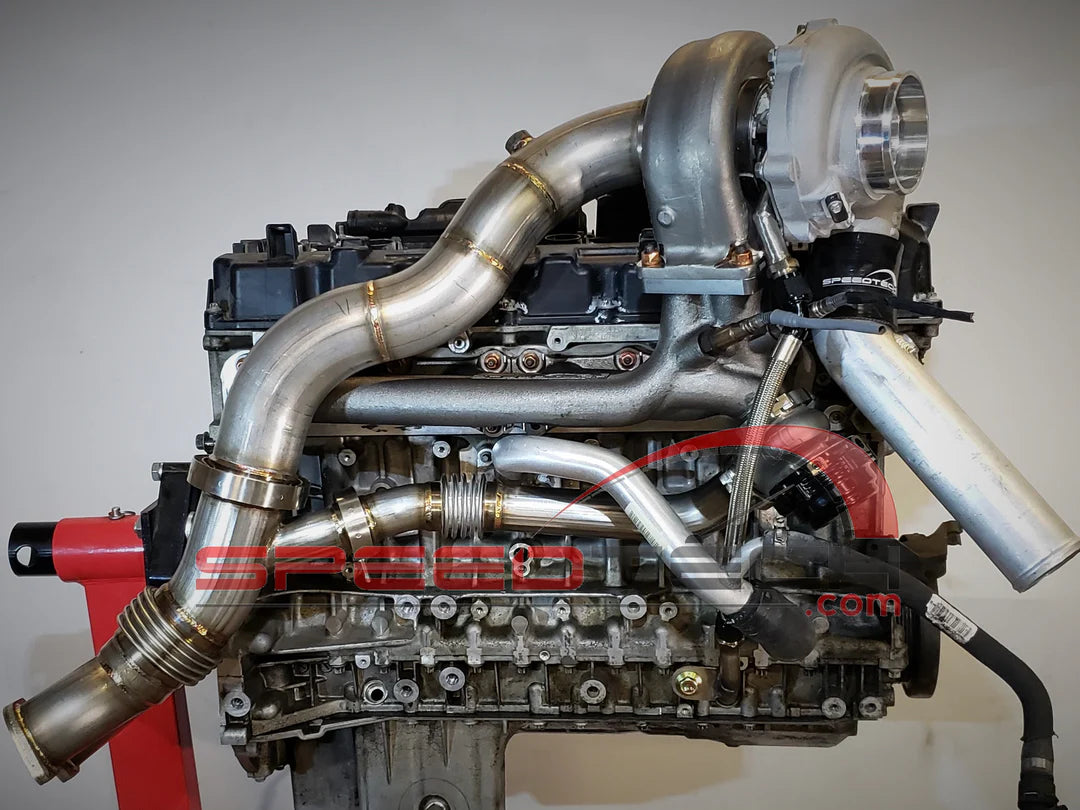

HPT F2 6266 Billet Ball Bearing Turbo Kit – N54 Bottom Mount

Street & Strip Ready | Fast Spool | High Boost Capability

The HPT F2 6266 Billet Ball Bearing Turbo Kit delivers exceptional performance and reliability for BMW N54 enthusiasts ready to make serious power. Built around the powerful and responsive HPT 6266 billet ball bearing turbo, this bottom-mount kit offers fast spool characteristics and top-end horsepower, making it ideal for both spirited street driving and competitive use.

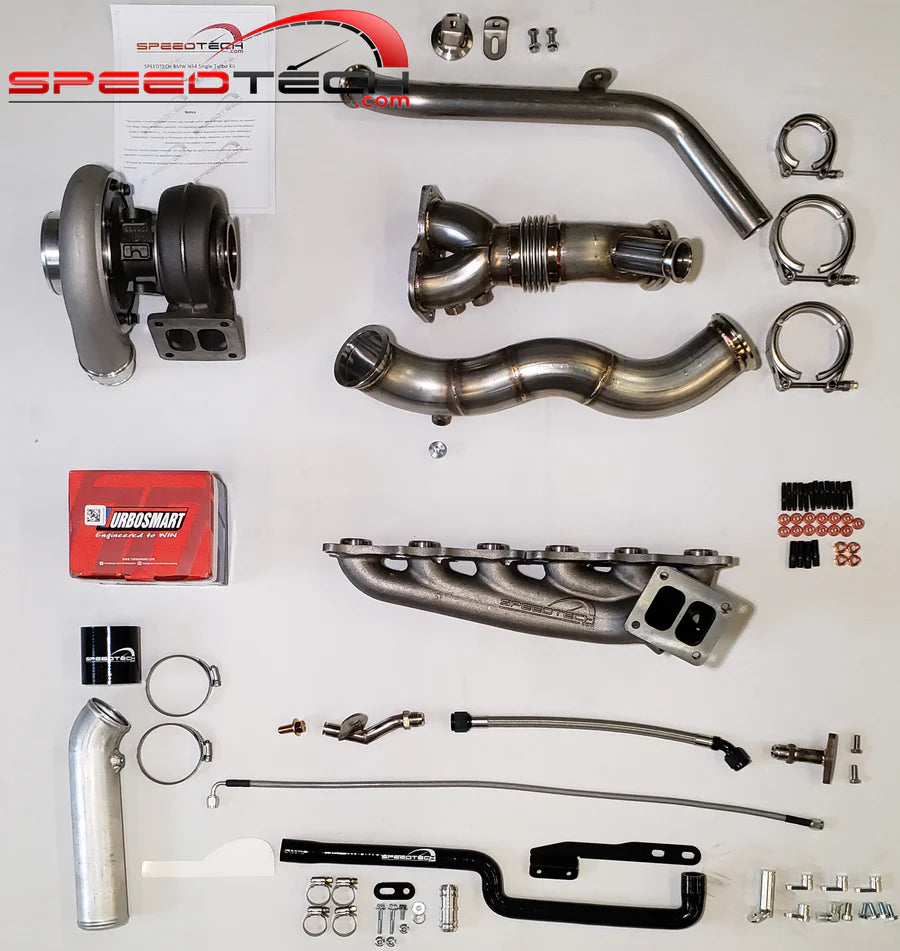

✅ Included in the Kit:

• HPT F2 6266 Billet Ball Bearing Turbo
  Lightweight billet compressor wheel and ball bearing CHRA for quick spool and excellent durability under high boost

• T4 Turbo Manifold

  • Includes studs and nuts

  • Available in Ceramic Coated or Raw Finish options

  • Precision-fit design to mount seamlessly in the bottom-mount N54 layout

• 2-Piece Stainless Steel Tubing

  • TIG-welded, high-temperature resistant construction

  • Want to fabricate your own? Email us to remove the tubing from your order and receive a discount code

• Stainless Steel Wastegate Pipe

  • Choose Recirculating or Open Dump for the exhaust path

  • Perfectly matched to our manifold and wastegate selections

• V-Band Clamps

  • High-strength, leak-proof connections for ease of installation and long-term reliability

• Billet CNC Aluminum Oil & Coolant Plugs, and O-Rings

  • Precision machined, high-tolerance sealing components for leak-free operation

• Stainless Braided -4AN Oil Feed Hose with AN fittings

• Stainless Braided -10AN Oil Drain Hose

• Stainless Steel -10AN Turbo Drain Fitting

• Stainless Steel -10AN Fitting to Engine Block

• Aluminum Charge Pipe – Lightweight and durable with optimized routing

• High-Temp Silicone Couplers

• Coolant Expansion Tank Relocation Kit

  • Provides proper clearance for the turbo setup

  • Clean, OEM-plus fitment and finish

• Wastegate (Your Choice):

  • Turbosmart Hypergate

  • Turbosmart Hypergate Sleeper Lite (includes all spring options)

  • TiAL MVR

  • PSR 45mm

  • Or select No Wastegate if supplying your own

⏱ Lead Time:

4 to 6 weeks – Each kit is built to order for quality control and fitment accuracy.

📦 Shipping Notes:

• Domestic Orders (USA):
  Turbo may ship separately directly from HPT. Parts may arrive at different times.

• International or Freight Forwarding:
  Full kit will ship in one package to your forwarding address.
