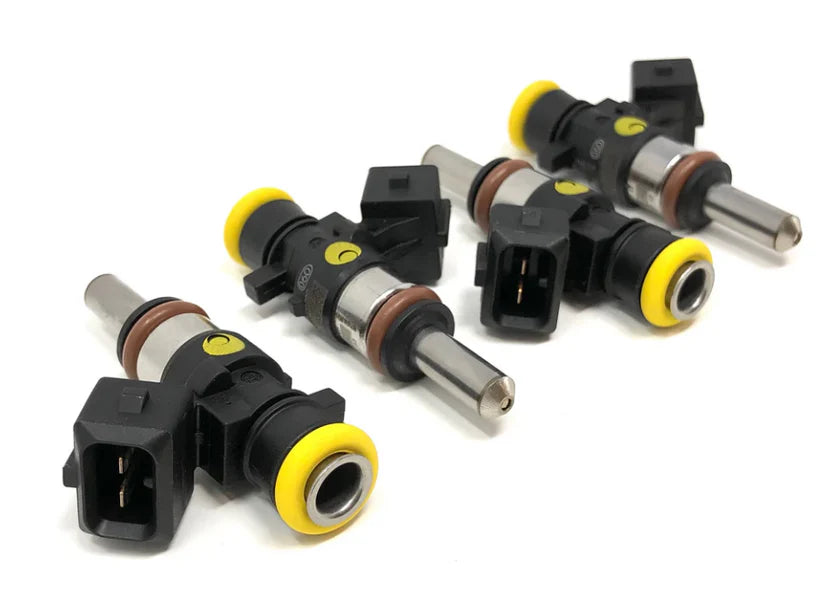

Precision Raceworks Genuine Bosch Motorsports EV14 Extended Tip Injectors – EV1 Connector

Available in 4 or 6 Injector Sets
Flow Rates: 925cc or 1300cc Options
Perfect for EA888.3 & Center-Fire BMW Applications

🚀 Engineered for High-Performance Applications

Precision Raceworks presents the Bosch EV14 Extended Tip Fuel Injectors featuring EV1 (Jetronic-style) connectors, built to deliver unmatched performance and reliability. These are authentic Bosch Motorsport injectors — flow-matched, dynamically balanced, and certified for confidence in the most demanding fuel systems.

Ideal for EA888.3 engines (VW/Audi) and center-fire BMW intake manifolds, these injectors are the top choice for tuners seeking maximum fuel delivery with consistent spray patterns and complete fuel compatibility, including E85.

🔍 Key Features:

• ✅ Full Stainless Wetted Internals
  100% compatible with all known fuels, including ethanol, race fuels, and pump gas.

• ✅ Extended Tip with Proprietary Spray Pattern
  Optimized for EA888.3 and center-fire BMW manifolds, improving combustion efficiency and idle quality.

• ✅ High Stability Magnetic Valve Design
  Operates reliably under extreme conditions — stable up to 10 bar fuel pressure.

• ✅ Dynamically Matched Within 2% (Static & Dynamic)
  Each injector set is flow-tested and matched for peak consistency across the entire RPM and load range.

• ✅ Bosch Certificate of Conformance Included
  Each injector is individually serialized, and the set comes with actual flow data, not just advertised specs.

📊 Flow Rate Specifications:

🔷 925cc Injectors

🔷 1300cc Injectors

Note: Actual flow rate may vary slightly due to manufacturing tolerances. Advertised flow is based on average tested values.

⚙️ Technical Details:

• Connector Type: EV1 / Jetronic

• Wetted Materials: Full Stainless Steel

• Spray Pattern: Proprietary (multi-hole, optimized for center-fire injection)

• Fuel Compatibility: 100% compatible with all fuels (Pump Gas, E85, Methanol blends)

• Voltage Compatibility: Compatible with most OEM and aftermarket ECUs and drivers

• Certification: Bosch Certificate of Conformance with flow data included

🔧 Fitment Suggestions:

These injectors are ideal for applications requiring high fuel flow, precise delivery, and excellent compatibility with E85 or race fuel. Especially well-suited for:

• Volkswagen/Audi EA888.3 Gen 3 TSI engines

• BMW N54, N55, or B-series engines using center-fire port injection manifolds

• Aftermarket port injection systems (e.g., Precision Raceworks PI kits, AIC/JB4 compatible)

• Custom turbocharged or high-horsepower builds requiring advanced fuel atomization and flow rates
