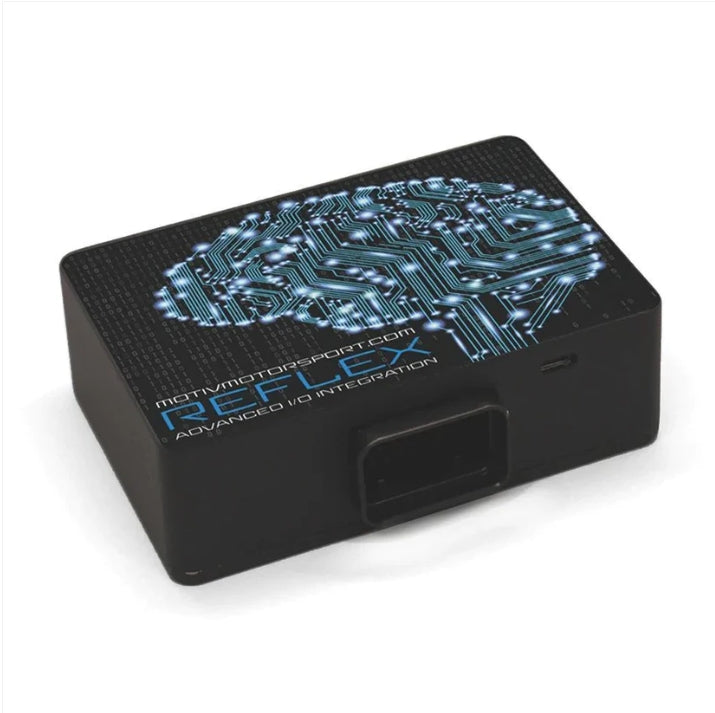

MOTIV Re|Flex Advanced I/O Integration & Port Injection Controller

The Most Powerful, Flexible, and Expandable Standalone & Auxiliary Controller on the Market

The MOTIV Re|Flex is the industry-leading solution for advanced engine control, port injection management, and I/O integration, developed for enthusiasts and professionals demanding precise tuning, real-time data logging, and full control over aftermarket systems. Whether you need standalone sequential fuel injection, CANbus integration, or auxiliary output control, the Re|Flex does it all—in one powerful, compact unit.

🔧 What Is the Re|Flex?

The MOTIV Re|Flex is a fully programmable controller designed to:

• Run sequential port injection on engines with up to 8 cylinders

• Control auxiliary systems (methanol injection, nitrous, boost solenoids, fuel pumps, etc.)

• Log and integrate real-time sensor data

• Communicate with the factory DME/ECU via CANbus (optional but highly recommended)

Whether you're building a street-driven flex fuel setup or a high-boost race application, the Re|Flex is your all-in-one control module.

✅ Key Features & Capabilities

🔥 Standalone or Parallel Operation

• Works independently or in parallel with the factory ECU

• Seamlessly integrates with BMW and other modern vehicles using optional CANbus communication

• Sends sensor data to and from the DME/ECU for adaptive tuning, safety, and failsafes

🧪 Built-In Ethanol Content Analyzer

• Real-time flex fuel support with live ethanol percentage input

• Ethanol compensation tables built into the firmware and XDF files

• Supports both Re|Flex and Bluetooth ethanol sensors (with optional breakout harness)

🎯 Sequential Port Injection

• Control up to 8 injectors in batch, semi-batch, or full sequential modes

• Injector fault detection and safety monitoring

• Preset and configurable crank/cam trigger options for BMW and other applications

• Universal and vehicle-specific base maps included for quick setup

🌡️ Sensor Inputs & Outputs

• 2 Inputs:

  • Ethanol content sensor

  • 0–10 bar pressure sensor (Fuel, Oil, EGBP, Coolant, Crankcase)

• 2 Configurable Outputs:

  • PWM, frequency (25Hz), on/off, or PID control

  • Use for meth/nitrous solenoids, boost control, fuel pumps, relays, and more

📊 Tuning Flexibility with TunerPro R/T

• Fully customizable tables (12x12 resolution)

• Create tuning strategies based on pressure, ethanol content, boost targets, and more

• Supports real-time datalogging and tuning via USB

🧠 CANbus Integration (Optional)

• Enables ECU/DME to receive sensor data (ethanol %, pressure, etc.)

• Allows error reporting, engine trips, and failsafe implementation

• Does not interfere with OBDII logging or factory diagnostics

• Works with factory ECU flash tools to enhance integration and tuning flexibility

📦 Optional Accessories

• Re|Flex Plug-and-Play Ethanol Sensor Breakout Harness
  Allows simultaneous use of the Re|Flex and a Bluetooth ethanol analyzer

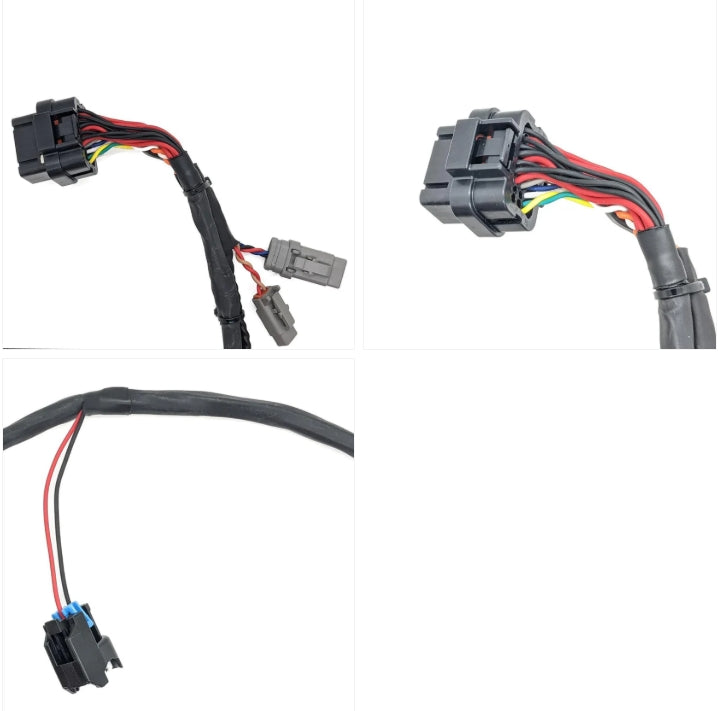

• Universal Wiring Harness & Bosch Injectors
  Fully tested and flow-matched with data sheets (sold separately)

🔋 Supported Engine Configurations:

• Fully compatible with 4, 5, 6, and 8-cylinder engines

• Ideal for modern turbocharged platforms including BMW N54, N55, B58, and others

🛠️ Applications:

• Standalone Port Injection Management

• Flex Fuel Conversion (E85)

• Boost Control / WGDC

• Methanol/Nitrous Control

• Auxiliary Fuel Pumps

• Real-Time Logging and DME/ECU Integration

⚙️ Designed for the Future

As vehicle tuning platforms evolve, so does the Re|Flex. With user-upgradable firmware and a strong developer network, this module is future-proof, scalable, and built to support new functionality as it becomes available.

🌍 Trusted by Professionals & Tuners Worldwide

Whether you're running a track-prepped BMW or a high-boost flex-fuel build, the MOTIV Re|Flex brings you the most advanced, accurate, and safe solution for managing port injection and auxiliary outputs—all in one compact, versatile unit.

Get full control. Get Re|Flex.
For warranty activation, installation guides, tuning files, firmware updates, and support documentation, visit our support portal.
