Upgraded EKPM3 Fuel Pump Control Module

Fits Select E-Chassis and F-Chassis BMWs | Supports High-Performance LPFPs Like Walbro 525/535

Boost the reliability and performance of your BMW’s low-pressure fuel system with the Upgraded EKPM3 by Arc Terminator—a must-have for high-powered builds running large fuel pumps such as the Walbro 450, 525, or 535. Factory EKPM3 modules are notorious for thermal shutdowns under increased fuel demands, but our upgraded EKPM3 solves that issue with 22 amps of added current capacity and thermal protection enhancements.

🔧 Why Upgrade to Our EKPM3?

Factory EKPM3s use a stock Infineon half-bridge IC rated for only 33A peak / 17-18A sustained, making them prone to overheating and failure with aftermarket pumps. We replace this IC with a genuine high-output Infineon chip rated for 55A peak / 30+A sustained, ensuring your fuel pump receives stable power even under intense demand.

✅ Key Features

• +22 Amp Increase in Maximum Output
  Supplies more current to large LPFPs without overheating.

• Supports High-Capacity Fuel Pumps
  Ideal for Walbro 450, 525, 535 and similar aftermarket LPFPs.

• Thermal Overload Protection with Integrated Cooling Fan
  Includes thermal switch to activate a 40mm fan at 50°C for added protection.

• OEM Fit, Upgraded Internals
  Starts with a brand-new OEM EKPM3—no used cores or recycled components.

• Professional Coding Recommended
  Compatible with ProTool, NCS Expert, E-SYS, etc.

• Direct Plug-and-Play Replacement
  Fully compatible with listed part numbers and chassis (see below).

🔧 Fitment Overview

✅ E-Chassis Fitment:

• 1 Series: E81, E82, E87, E88

• 3 Series: E90, E91, E92, E93

• 5 Series: E60, E61

• 6 Series: E63, E64

• X Series: X1 (E84), X5 (E70), X6 (E71)

• Z4: E89
  🔗 Compatible OEM Part Numbers:
  16147229173, 16147218339, 16147209286, 16147054041, and more

✅ F-Chassis Fitment:

• 1 Series: F20, F21

• 2 Series: F22, F23 (non-M)

• 3 Series: F30, F31, F34, F35

• 4 Series: F32, F33, F36

• 5 Series: F07, F10, F11, F18

• 6 Series: F06, F12, F13

• 7 Series: F01, F02, F03, F04

• X Series: X3 (F25), X4 (F26), X5 (F15), X6 (F16)
  🔗 Compatible OEM Part Numbers:
  16147371832, 16147358144, 16147268462, 16147229175, and more

❌ Not compatible with M-series vehicles like M3, M4, M2, etc.

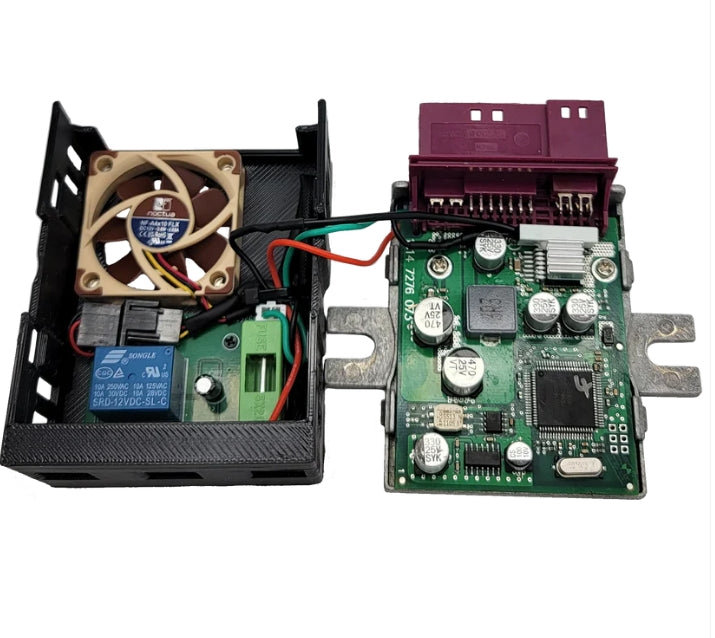

📦 What’s Included

• 1x Upgraded EKPM3 Module (Brand-New Unit)

• Integrated 40mm Cooling Fan

• Pre-installed High-Performance Infineon IC

• Thermal Switch for Automatic Cooling Activation

💡 FAQ

Q: Do I need coding?
A: Yes. Coding ensures proper communication with the DME. Use ProTool, E-SYS, or NCS Expert depending on your chassis.

Q: Can I run more than one fuel pump with this?
A: No. Factory 14-gauge wiring limits safe current capacity. For dual pumps, use a separate relay or Hobbs switch setup.

Q: Will this work with an EKPM2?
A: Yes, but coding is required. HW05 or lower modules are preferred for compatibility.

Q: Do I need additional cooling?
A: Only if you're using a Walbro 450 or larger. The integrated fan will auto-activate at 50°C.

⚠️ Important Notices

• This product is intended for off-road or motorsport use only. Not DOT-approved.

• May void OEM warranties. Install at your own risk.

• A qualified professional should handle installation and coding.

🛡️ Warranty

This product includes a 2-Year Limited Warranty.
